Piston Fillers & Depositors

We design & manufacture piston fillers, depositors and
liquid filling systems to meet specific product requirements.

Piston Filler

Piston Fillers & Depositors

from REB-INC accurately dispense a wide variety of flow able products for hot or cold filling.

Piston Filler & Liquid Filling Systems

from REB-INC are used for a wide range of applications and provide very accurate fills in many industries.

  • Cosmetic & Personal Care

    : Lotions, Gels, Shampoos, Conditioners, Scrubs, Masks, Soaps
  • Food & Bakery

    : Pasta Sauce, Salad Dressing, Salsa, Relishes, Batters, Pie Fillings, Jam, Jelly
  • Pharmaceutical

    : Cough Syrups, Topical Creams and Lotions
  • Nutraceutical

    : Animal Health Products, Health Drinks
  • Chemical Industry

    : Lubricants, Paints, Stains, Janitorial Products, Detergents, Resins
REB can supply you with a custom designed piston filling system for a wide range of container shapes and sizes with fill volumes that range from fractional ounces to a gallon.

We design and manufacture Piston Fillers, Depositors and Liquid Pressure and Gravity filling systems to meet your specific production requirements.

REB Volumetric Piston Filling and Depositing Systems have been designed with you the customer, in mind. Our piston filling systems can be used in start up and small batch applications or supplied with conveyors and container indexing systems for fully automatic operation.

To reduce down time for changeovers and cleaning, all product contact components can be disassembled without the use of any tools and can be removed from the machine for sanitization. Our machines frames are welded and made of stainless steel, all product contact parts are made of stainless steel and USDA approved engineered plastics. All controls are contained in a wash down duty rated enclosure.

REB/Quality Cup has over 18 years of dedicated service to meet the needs of the Cosmetic, Food, Pharmaceutical and Specialty Chemical industries for high quality piston filling, liquid filling & depositing equipment.

All of REB's Volumetric Piston Fillers offer the greatest accuracy (typically within +/- 1/2of 1% by volume and many times even better) and can handle a wide range of product viscosities and consistencies. Production rates rate’s range from 5 to 30 cpm (containers per minute) on single cylinder Piston Fillers, up to 140 cpm on In-Line Piston Filling Systems and up to 300 cpm on Rotary Piston Filling Systems.

Piston Filler Table-Top Model SVS-J
Piston Filler
The Model SVS-J is well suited for the start up operations, lab environment or small batch production.

Piston Filler Semi Automatic Model SVS
Piston Filler Semi-Automatic
The Model SVS can be supplied in a table-top or pedestal style design.
It has a larger fill range than the SVS and is manufactured with a heavy duty frame and piston drive.

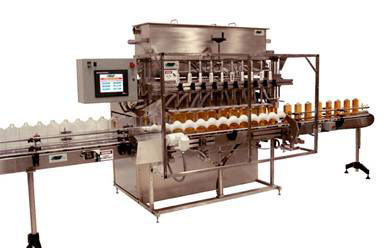

Piston Filler In-line Automatic Model IVS
Piston Filler In-line Automatic
The IVS series is for higher speed automatic filling and are
available in 2 to 12 cylinders with speeds up to 140 cpm.

Rotary Piston Filler: Model RVS-12
Rotary Piston Filler
REB rotary piston filler systems come in 9, 12 and 18 cylinder standard frame size machines and a 9 and 12 cylinder gallon frame size machines.

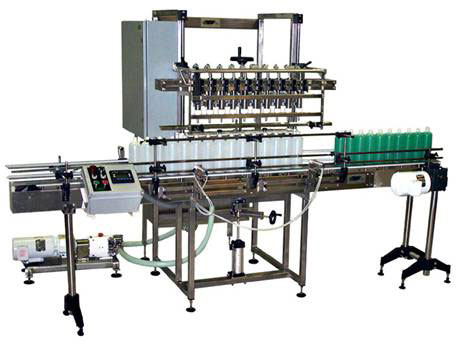

In-Line Level Fillers Model ILS
In-Line Level Filler
REB'S In-Line Pressure/Gravity or Vacuum Filling Systems are designed to provide consistent product levels in a rigid container and are available in 2 to 12 filling nozzle
configurations with speeds from 10 to 80 cpm.

Rotary Cup Fillers and Sealers Model QC-8

Rotary Cup Filler
The Rotary Cup Fillers are designed and manufactured in three frame sizes and are capable of running 40 cpm. The cup fillers can be supplied with Piston Fillers,
Auger Fillers, Volumetric Cup Fillers, or Scale Fillers.
